PE100 Black – HDPE Pipe Compound

It delivers top-quality PE100 pressure pipes for water and gas at higher pressures or thinner walls than PE80, with long-term UV protection.

PE100 Black Technical Data

Typical values, not to be construed as specification limits. Download the PE100 Black technical data sheet (PDF).

Key Features

• PE100 black compound
• Excellent slow-crack-growth resistance
• UV protected
• OIT > 30 min

Iranian producers of PE100 Black

PE100 Black is produced in Iran by Shazand (Arak) Petrochemical (CRP100B). Rabin Polymer is an independent supplier and exporter, not an official agent of these producers – the producer, lot and packing of each shipment are confirmed in the offer.

Applications

Typical applications of PE100 Black:

Processing Guide

• Process: Pipe extrusion
• Extrusion temperature: 190 – 220 °C
• Pipe standard: ISO 4427 / EN 12201

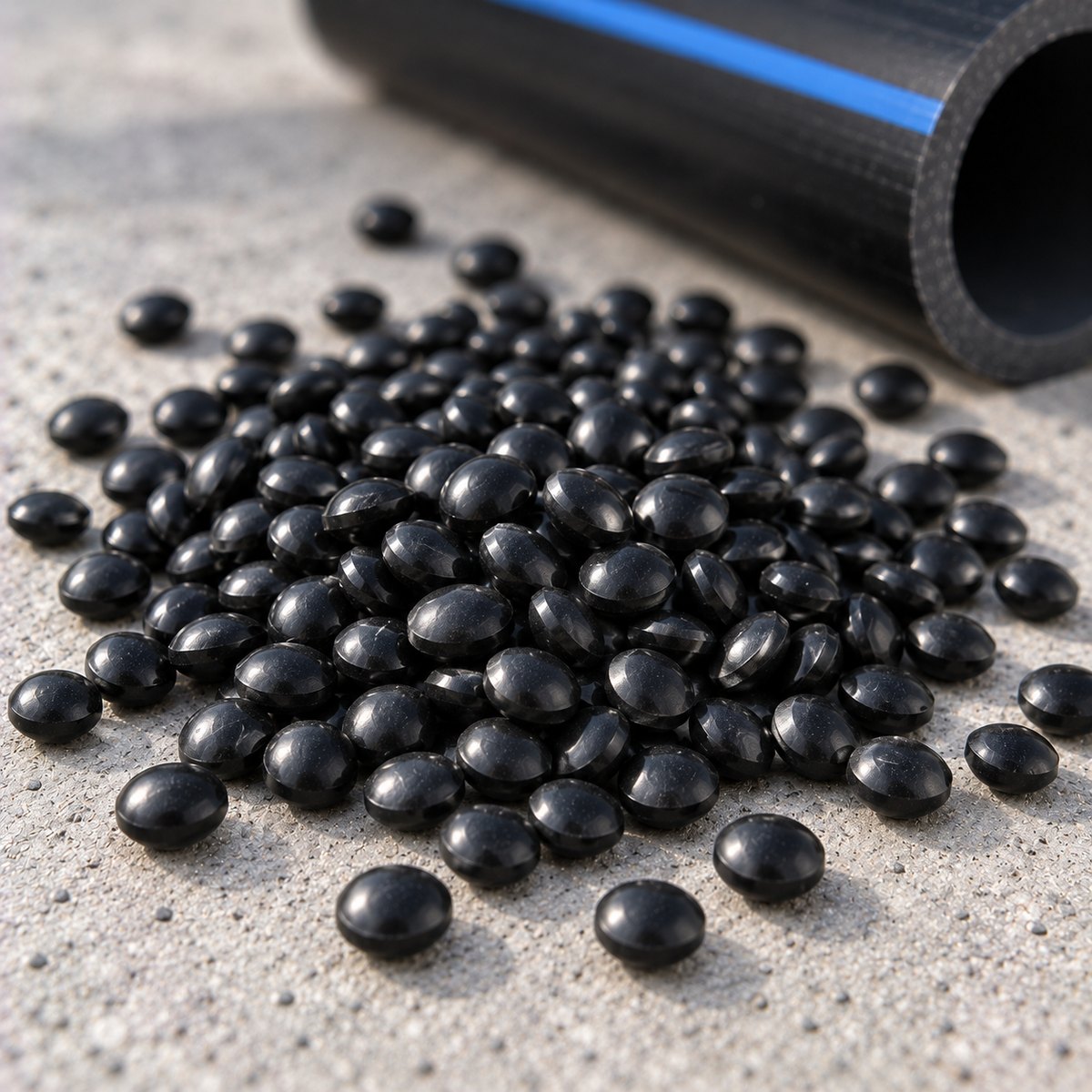

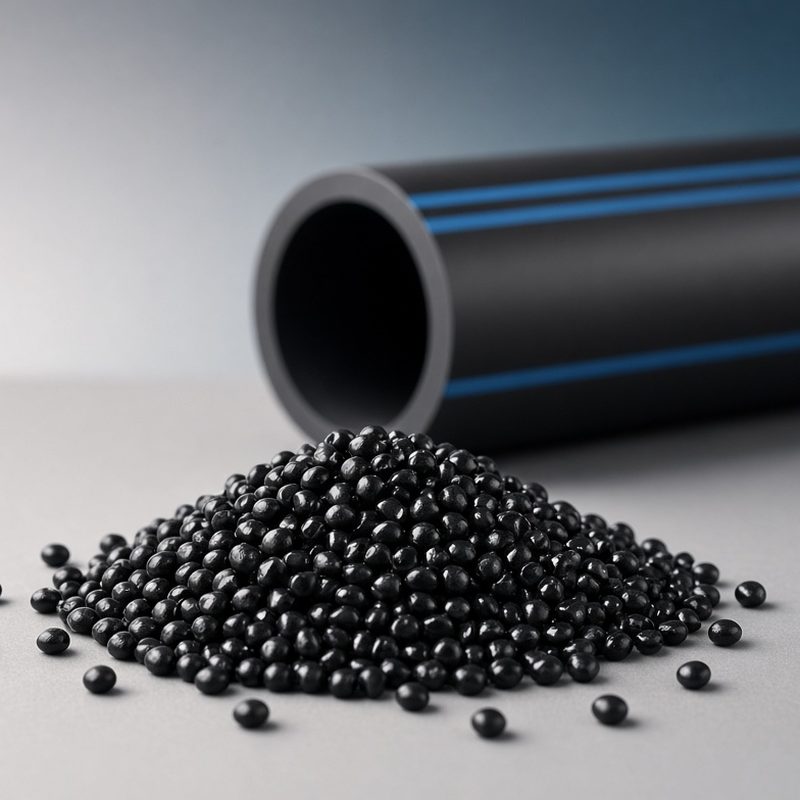

• Form: Black pellets

PE100 Black for buyers in Pakistan

In Karachi rate lists this grade trades under HDPE pipe resin (PE100) (prime, virgin plastic dana). Converters in Pakistan use PE100 Black for water mains, gas distribution pipe and pressure ducts for utility projects. Comparing grades? See also HDPE PE100 Natural or HDPE EX3.

For pipe makers in Pakistan this is ready PE100 pipe grade resin with carbon black already added, not finished pipe.

• Sea: 20′ / 40′ containers from Bandar Abbas to Karachi or Port Qasim
• Road: trucks via Taftan for inland buyers
• Packing: 25 kg PE or woven bags, palletised; jumbo bags on request
• Documents: commercial invoice, packing list, certificate of origin and the producer datasheet

The shipping mode, route and Incoterm are agreed for each order, depending on quantity, destination and timing.

PE100 Black Pipe Compound FAQ

What is the difference between PE100 and PE80?

PE100 has a minimum required strength (MRS) of 10 MPa versus 8 MPa for PE80. For the same pressure rating, PE100 pipes can have thinner walls, or for the same wall they can carry higher pressure.

Why use a pre-compounded black PE100 instead of natural resin plus masterbatch?

In a pre-compounded grade the 2.0–2.5% carbon black is dispersed at the producer, giving consistent UV protection and dispersion (< 3) that meets pipe standards without extra dosing equipment or the risk of poor mixing.

Which standards can pipes made from this compound meet?

The compound is intended for pressure pipe to ISO 4427 / EN 12201 for water and comparable gas pipe standards. Final certification depends on the pipe producer’s testing.

What test results can you provide?

Each lot comes with a certificate covering MFR, density, carbon black content and dispersion; OIT and other values are available on request.

What are the recommended extrusion settings?

Typical extrusion temperatures are 190–220 °C. Dry the material if it has absorbed moisture during storage.

What is the melt flow rate of PE100 Black?

Typical MFR at 190 °C / 5 kg: 0.22 g/10 min; density 0.957 g/cm³. Full values are in the table above and in the TDS PDF.

Who produces PE100 Black in Iran?

Shazand (Arak) Petrochemical. We confirm the producer for each lot.

How do I get today’s PE100 Black rate in Pakistan?

Send the grade, quantity and destination (for example Karachi, Lahore or Faisalabad) on WhatsApp or use the enquiry form. We reply within one business day. For a weekly overview, join our free weekly rate list.
