HDPE EX3 – Pipe Grade (PE80)

HDPE EX3 is a natural high density polyethylene with 1-butene comonomer, classified as PE80.

MFR 0.45 g/10 min 190 °C / 5 kg
Density 0.945 g/cm³
Class PE80

Download Technical Data Sheet (PDF) Get rate

Reply within one business day on WhatsApp or email
Sea to Karachi or Port Qasim, road via Taftan
Producer, lot and packing confirmed in every offer

Weekly rate listIranian PE & PP rates for Pakistan every Monday – free.Join on WhatsApp Telegram

SKU: RP-HDPE-EX3 Category: HDPE Pipe Grade (PE80 / PE100)

It offers good environmental stress-crack resistance combined with good impact strength for pressure pipes, drinking-water, gas and sewer pipes, drip irrigation and fittings.

HDPE EX3 Technical Data

Property	Test Method	Unit	Typical Value
Physical
Melt Flow Rate (190 °C / 5 kg)	ISO 1133	g/10 min	0.45
Melt Flow Rate (190 °C / 21.6 kg)	ISO 1133	g/10 min	12
Density	ISO 1183	g/cm³	0.945
Pipe
MRS Classification	ISO/TR 9080	MPa	8
Hydrostatic Strength (80 °C)	ISO 1167	h	1000
Mechanical
Tensile Modulus (secant)	ISO 527-1, -2	MPa	850
Tensile Stress at Yield	ISO 527-1, -2	MPa	22
Tensile Strain at Yield	ISO 527-1, -2	%	8
Charpy Notched Impact (23 °C)	ISO 179	kJ/m²	12
Hardness, Shore D	ISO 868	—	60

Typical values, not to be construed as specification limits. Download the HDPE EX3 technical data sheet (PDF).

Key Features

PE80 classified
Good stress-crack resistance
Good impact strength
Fully stabilised

Iranian producers of HDPE EX3

HDPE EX3 is produced in Iran by Amir Kabir Petrochemical (GM5010T2N / EX3). Rabin Polymer is an independent supplier and exporter, not an official agent of these producers – the producer, lot and packing of each shipment are confirmed in the offer.

Applications

Typical applications of HDPE EX3:

HDPE EX3 for Pressure Pipe — Pressure Pipe

HDPE EX3 for Drinking Water Pipe — Drinking Water Pipe

Processing Guide

Process: Pipe extrusion
Melt temperature: 190 – 220 °C
Also for: Fittings, sheet

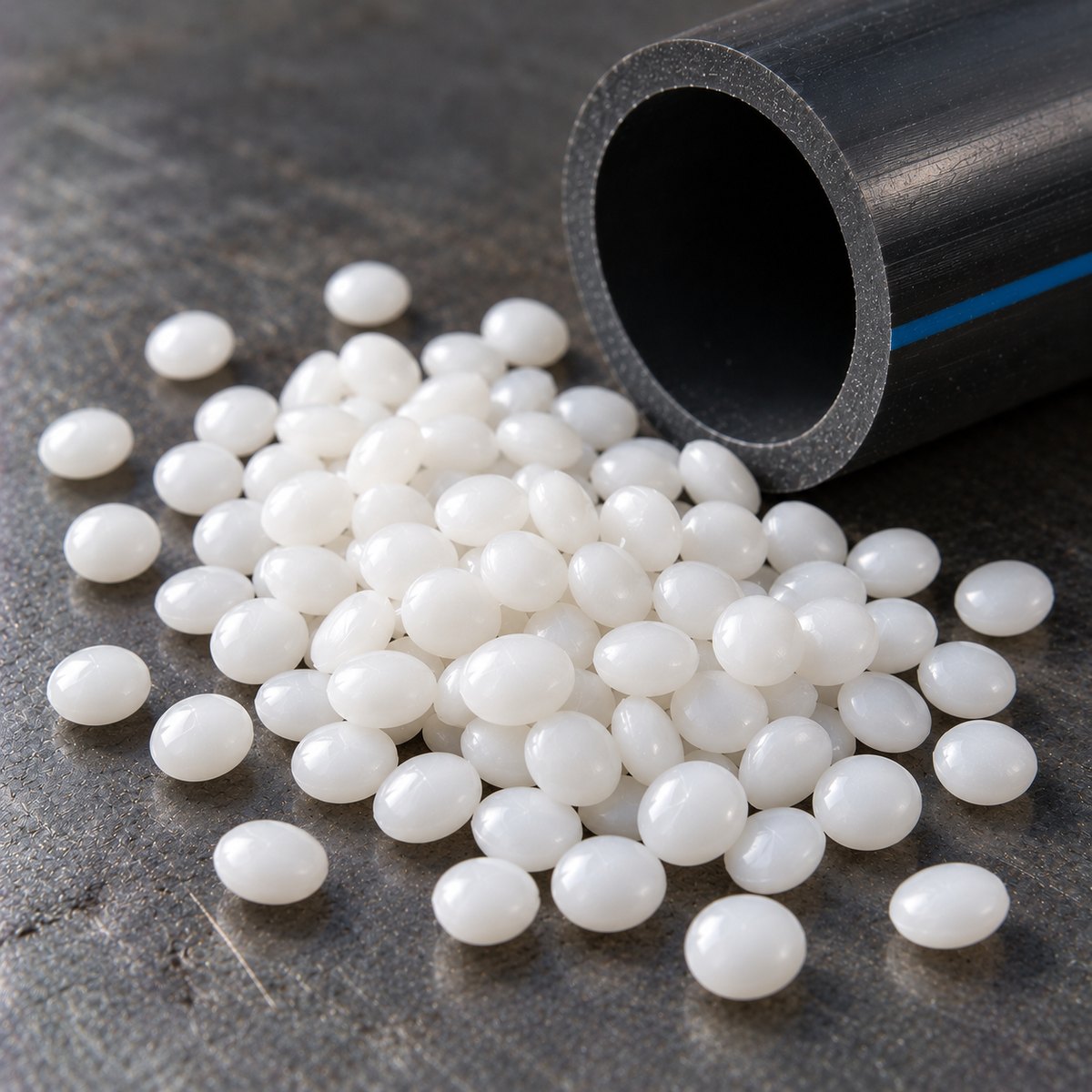

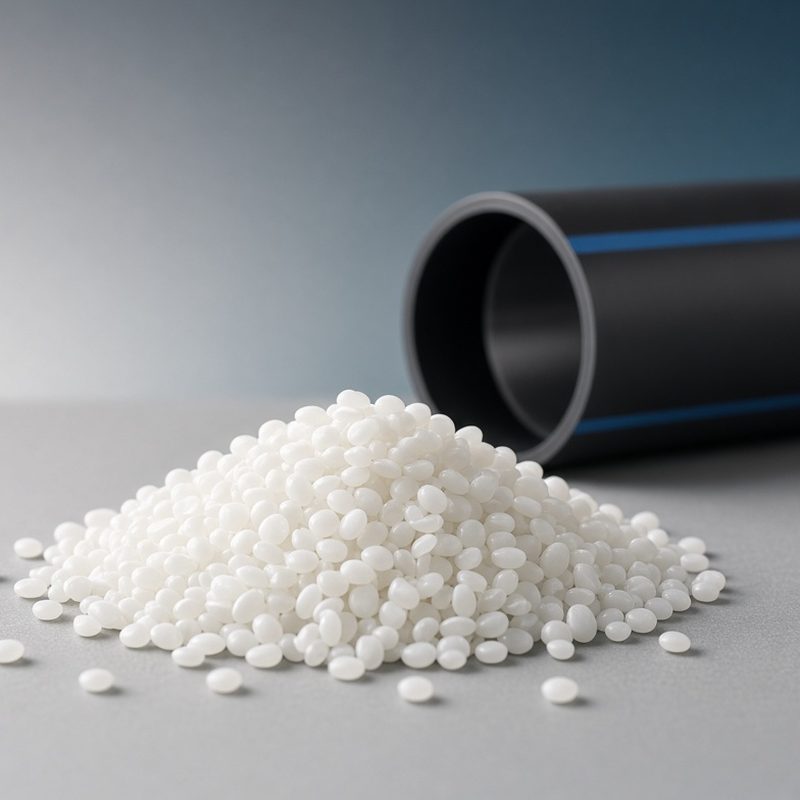

Form: Natural pellets

HDPE EX3 for buyers in Pakistan

In Karachi rate lists this grade trades under HDPE pipe resin (PE80) (prime, virgin plastic dana). Converters in Pakistan use HDPE EX3 for PE80 water and irrigation pipe, cable ducts and conduit. Comparing grades? See also HDPE PE100 Natural or PE100 Black.

For pipe makers in Pakistan this is PE80 pipe grade resin, not finished pipe. It is used for irrigation, duct and lower-pressure water lines.

Sea: 20′ / 40′ containers from Bandar Abbas to Karachi or Port Qasim
Road: trucks via Taftan for inland buyers
Packing: 25 kg PE or woven bags, palletised; jumbo bags on request
Documents: commercial invoice, packing list, certificate of origin and the producer datasheet

The shipping mode, route and Incoterm are agreed for each order, depending on quantity, destination and timing.

HDPE EX3 – frequently asked questions

What is the melt flow rate of HDPE EX3?

Typical MFR at 190 °C / 5 kg: 0.45 g/10 min; density 0.945 g/cm³. Full values are in the table above and in the TDS PDF.

Who produces HDPE EX3 in Iran?

Amir Kabir Petrochemical. We confirm the producer for each lot.
