HDPE EX5 – Blown Film Grade

It combines good stiffness and tenacity with a low gel level, producing strong blown films with a paper-like feel for bags and wrapping.

HDPE EX5 Technical Data

Typical values, not to be construed as specification limits. Download the HDPE EX5 technical data sheet (PDF).

Key Features

• High molar mass film grade
• Good stiffness & tenacity
• Low gel level
• Food-contact grade

Iranian producers of HDPE EX5

HDPE EX5 is produced in Iran by Marun Petrochemical (HM9450F) and Kermanshah Polymer (Bakhtar) (EX5). Rabin Polymer is an independent supplier and exporter, not an official agent of these producers – the producer, lot and packing of each shipment are confirmed in the offer.

Applications

Typical applications of HDPE EX5:

Processing Guide

• Process: Blown film extrusion
• Melt temperature: 200 – 230 °C
• Blow-up ratio: ≈ 4 : 1
• Film thickness: 10 – 200 µm

HDPE EX5 for buyers in Pakistan

In Karachi rate lists this grade trades under HDPE Film (prime, virgin plastic dana). Converters in Pakistan use HDPE EX5 for T-shirt carrier bags, shopping bags and thin, paper-like HDPE film. Comparing grades? See also HDPE 5110 or HDPE F7000.

• Sea: 20′ / 40′ containers from Bandar Abbas to Karachi or Port Qasim
• Road: trucks via Taftan for inland buyers
• Packing: 25 kg PE or woven bags, palletised; jumbo bags on request
• Documents: commercial invoice, packing list, certificate of origin and the producer datasheet

The shipping mode, route and Incoterm are agreed for each order, depending on quantity, destination and timing.

HDPE EX5 FAQ

What is HDPE EX5 used for?

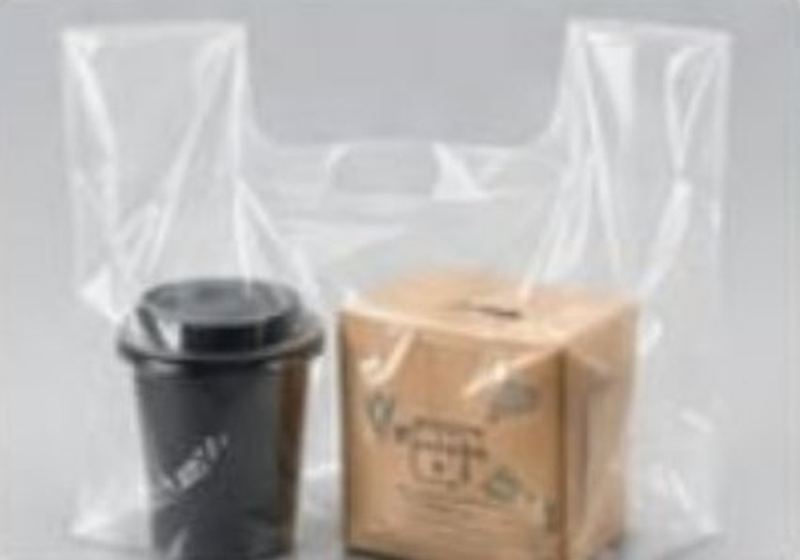

HDPE EX5 is a bimodal HDPE film grade for strong blown film with a paper-like feel: counter bags, carrier (T-shirt) bags, wrapping film and general blown film from about 10 to 200 µm.

How does HDPE EX5 compare with HDPE F7000?

Both are HDPE blown-film grades. EX5 is a bimodal butene grade with a dart impact of about 220 g at 20 µm and a low gel level, favoured for tough bags and wrapping film. F7000 is chosen when the priority is very thin film (down to about 6 µm) at high line speed. Many converters blend either grade with 10–30% LLDPE for extra toughness.

What processing conditions are recommended?

Typical melt temperature is 200–230 °C with a blow-up ratio of about 4 : 1 on high-stalk (neck) HDPE film lines.

Is HDPE EX5 suitable for food contact?

Yes – EX5 is supplied as a food-contact film grade. Ask us for the lot certificate of analysis and compliance statement with your order.

What is the minimum order and how is it packed?

One container (about 25 t) in 25 kg bags on pallets or in jumbo bags, delivered ex-factory or at the Iranian border, with full export documents.

What is the melt flow rate of HDPE EX5?

Typical MFR at 190 °C / 5 kg: 0.28 g/10 min; density 0.949 g/cm³. Full values are in the table above and in the TDS PDF.

Who produces HDPE EX5 in Iran?

Marun Petrochemical and Kermanshah Polymer (Bakhtar). We confirm the producer for each lot.

How do I get today’s HDPE EX5 rate in Pakistan?

Send the grade, quantity and destination (for example Karachi, Lahore or Faisalabad) on WhatsApp or use the enquiry form. We reply within one business day. For a weekly overview, join our free weekly rate list.
